BD121 wear resistant ceramic adhesives
Invention Patent No.:
200510064703.1 ( Patent Certificate for your reference )
Packing specification:
Two component,5Kg/group(A component:4Kg, B component: 1Kg),packed in a plastic drum.
performance features:
With strong initial viscous force,it's consist of modified heat resistant toughening resin and special curing agent,aging resistant (can reach more than 8 years),high temperature resistant,good toughness
Can cure at room temperature,can also heat for curing
During constructing on the ceiling and facade,it doesn't flow and fall off.

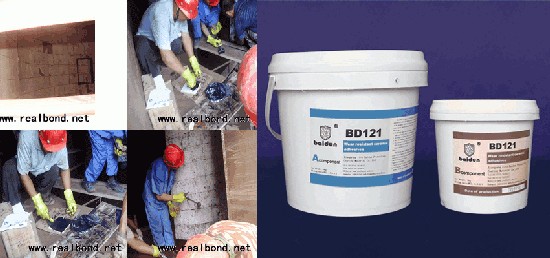

product usage:
mainly used in the bonding of wear resistant ceramic chip on the top surface and facade of the equipment. With strong initial adhesion,it won't fall off without using magnet or other support measures during construction,optimizing construction technology and reducing construction cost
How to use:
1. Surface treatment:Grinding or sand blasting to clean up the dust,greasy dirt and rust on the surface of adherend,finally clean it by cleaning agent.
2. Configure adhesive:According to A:B(mass ratio)=4:1,make A and B two components mix uniformly
3. Using adhesive:Make the configured adhesive be coating on the surface of adherend uniformly
4. Curing:Fully curing for 24 hours at the room temperature,if heat it up to the temperature of 60¡æ and keep this temperature for 2 hours,then do the post curing,in this way,can get higher combination property(can improve 30%)
5. The configured adhesive should be used up before the coating application time limit.
performance index:
| BD121 wear resistant ceramic adhesive physical mechanical properties table | |||||
| color | physical state | density(g/cm3) |
compressive strength(kg/cm2) GB/7124-2008 |
shear strength(kg/cm2) GB/1041-2008 |
impact strength(J/cm2) GB6328-1999 |
| white | paste/thixotropy | 1.54 | 923 | 152 | 56 |
| BD121 wear resistant ceramic adhesive curing features table(test condition:temperature:20¡«25¡æ,relative humidity:55) | |||||
| coating time limit(min) | curing time | need curing time before full load operation | working temperature(¡æ) | the highest temperature resistant(¡æ) | |
| 30¡«60 | room temperature:24h or room temperature:1h+60¡æ:2h | 24h | -60¡«120 | 150 | |
Special version:
1. This parameter is for laboratory conditions,due to the actual working condition is more complex,suggest users do pretest according to actual working condition
2. When the environment temperature is below 15¡æ,the curing time will prolong,should take proper heating measure
3. When the environment temperature is more than 25¡æ or the mixing quantity is too large,the curing speed will expedite,should properly shorten the application time of coating after mixing.
Transportation storage:
Sealed storage in the cool and dry place.The warranty period is 2 years.Avoid placing it upside down,knocking against and transporting it as a non-dangerous product during transportation.
